GPS Camera description

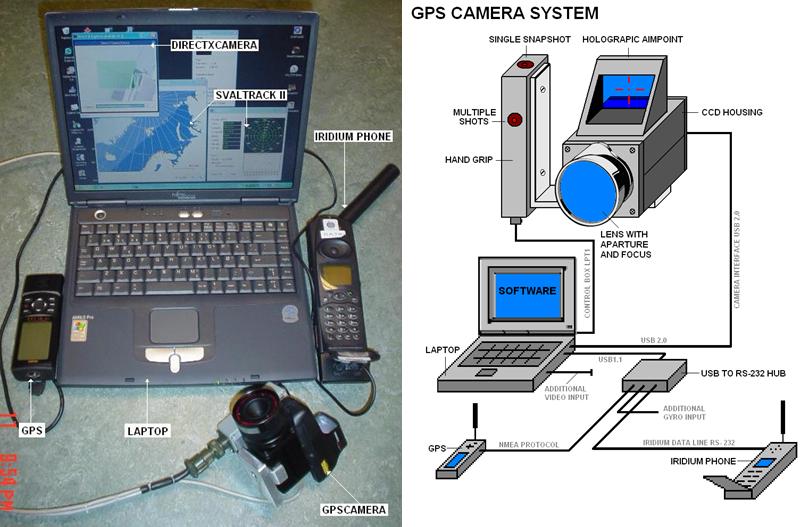

Version 1: The assembled system with video - or a real time USB camera.

Spesifications

Typical USB Camera - Electrim

Full resolution: 1280 x 1024 pixels
Image size: 6.66 mm x 5.32 mm
Pixel size: 5.2u x 5.2u
Noise < 0.03 %
S/N ratio: 54 dB
Pixel rate: 24 mega pixels / second
Bits per pixel: 8 per color component (24 bits RGB)
Frame rate: 14.33 frames / second (max. full frame)
Exposure time: 66u to 4 second
Rolling shutter CMOS sensor
Progressive scan
Isochronously image transfer
Lens mount C
All power supplied from USB 2.0

Camera Accessories

Rugged aluminum enclosure with handgrip
Single and multiple exposure buttons on handgrip
5 m USB 2.0 / LPT1 control cable
Holographic aim point
C – mount lenses (standard 8 - 75 mm)
Standard Ľ” tripod mounting socket

SLR Cameras

Fujifilm S2Pro 6.5MB Super CCD III 4256 x 2848 pixels
Fujilfilm S3Pro 6.5MB Super CCD IV SR 4256 x 2848 pixels
Nikon D1X CCD 5.3MB 3008 x 1960 pixels with RS232C GPS input

Additional modules

GPS with NMEA protocol (Garmin 12XL)
Iridium phone kit (Motorola 9505 or 9505A)
2 x External antennas
USB to RS – 232 hub (min. 2 serial ports)
Compact flash reader

Software

Operation system: Microsoft Windows® 2000 or XP
GPS and Moving map: YaARCo’s SvalTrack II
Camera software: YaARCo’s DirectXCamera
Software controlled exposure etc.
Selectable DirectX devices (supports multiple cameras)
Target frames selectable [160 x 120, 320 x 240]
Auto save: Target and full frames
Time and GPS position in images
Apollo NDIS Emulator Driver (Iridium network driver)
Ipswich FTP Home Client or SvalViewII

Requirements

Windows ® 2000 or Windows XP with USB 2.0 drivers
DirectShow ® (component of Microsoft DirectX ®)
2 powered USB 2.0 ports
Printer port LPT1
Recommended minimum of 1.6 GHz CPU

Optional

PCMCIA: RS-232 card & Analog Video Capture Card
High Sensitive Analog Camera (0.00015 Lux)
Light intensified video camera generation II.
Mechanical 2-axis stabilizator (pitch and roll)
3-axis solid state gyro system:
